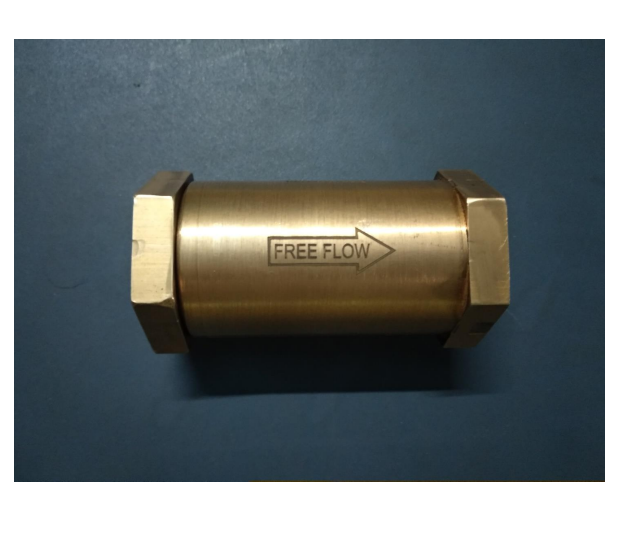

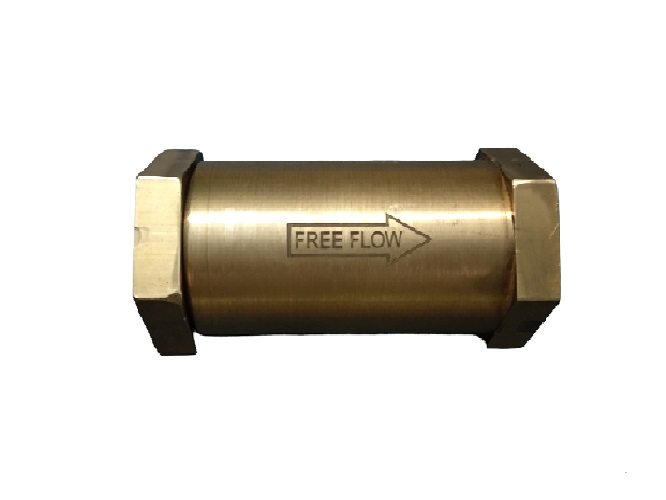

Relief Valve
A relief valve is a crucial safety component designed to protect pressurized systems from overpressure conditions. Its primary function is to release excess pressure from a system, ensuring that the pressure remains within safe operational limits. Commonly used in industries such as oil and gas, chemical processing, and power generation, relief valves are essential in preventing equipment damage, system failures, and potential safety hazards like explosions.
Pressure Relief Mechanism: When the system pressure exceeds the valve’s set pressure, the valve opens automatically, allowing the excess fluid or gas to escape and reducing the system’s pressure to a safe level.
Types of Relief Valves:
- Spring-loaded relief valves: These use a spring mechanism to control the valve’s opening and closing based on system pressure.
- Pilot-operated relief valves: These provide more precise control and are typically used in systems with higher pressure.
- Thermal relief valves: Designed to relieve pressure caused by thermal expansion in liquid-filled systems.
Applications:
- Steam systems: To relieve excess steam pressure.
- Liquid systems: To prevent overpressure due to pump malfunctions or blockages.
- Gas systems: To prevent excessive buildup of gas pressure.
Material Construction: Relief valves are often made from materials like stainless steel, brass, and other corrosion-resistant alloys to withstand harsh environments and varying temperature conditions.
Set Pressure and Adjustability: Relief valves are calibrated to specific set pressures, which can be adjusted to meet system requirements. The set pressure typically ranges from a few psi to thousands of psi, depending on the application.
Benefits of Using Relief Valves:
- Safety: Prevents catastrophic system failures, protecting both equipment and personnel.
- Reliability: Ensures consistent operation under high-pressure conditions, maintaining system integrity.
- Regulatory Compliance: Helps systems comply with industry safety standards and regulations.
